New Arrow filter/desiccant system for paint booth

Dean Jenkins

Promoted Users
My air distribution and filtering system needed to be upgraded.
There was an earlier thread from Chris Hamilton about the Arrow desiccant canister and that was very helpful.

I ended up re-doing my whole system.

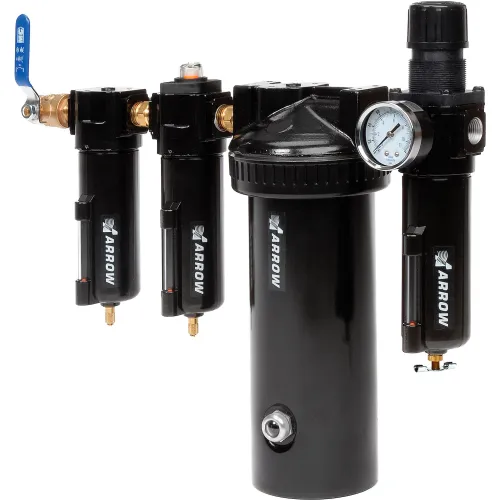

3/4 inch PEX straight from the compressor to the paint booth and then put in the Arrow 5-stage system, which included the desiccant canister.

1/2 inch Flexilla hose, with Flexilla 3/8 inch NTP, high flow connectors.

That ought to get clean, dry air at max CFM to the gun!

Yeah, a 36 inch drip leg is excessive, but I wanted to get it close to the ground so I could bleed off most of the pressure and then catch the water in a bucket rather than making a mess . . .

Air Supply.jpg


I tee'd a leg off of the 3/4 inch PEX to a separate area of the shop, for pneumatic tools. That leg has it's own simpler filter/water trap/regulator.

We'll see how it works!


Gmills

Promoted Users
Shine, you always have a better idea. I tell young guys all the time to slow down and listen to some of these older fellows that have been around and learn. I also say never fire a lazy guy, give him a hard job and watch him find an easy way to do it.


Dean Jenkins

Promoted Users
My old unit sprung another leak today. Tired of fixing it. I think I may get off my wallet for this unit this weekend.
I've been happy with it. Shot a lot of paint through it with no issues.
Only had to dry the dessicant once in several months, here in the Northwest.
Did it in the oven in the house, did NOT make my wife happy . . .


Chris_Hamilton

Trying to be the best me, I can be
Just an FYI/Heads Up for everyone. The one I purchased in the sticky thread broke down this week. The threaded end at the bottom of the brass tube assy cracked. Allowing it to leak at the base in the middle. I have tried to find replacement parts without sucess. You can find replacements for the inner filter on the tube, but not the tube itself. I searched Arrow's website and found some contact info for help. Emailed and waiting to hear back. Very disappointing that it did not last longer than it did.


Mando

Promoted Users
Dean, that looks like a real good dryer setup. The only thing I am wondering is, I hope you don't have a sharp metal edge on that wheel that might cut into the hose as you pull to unreel the hose to use. Just a thought. I can't see it but maybe you already have some kind of rubber liner there to protect the hose.


RosharonRooster

Promoted Users
My system looks exactly like the one pictured. The arrow...but its labeled max air. I like it. I got it online on usa weld. Or us weld. The regulator did leak a little air so I replaced it. Because the noise. Bothered me. Other than that I get pretty good results for a backyard hack
